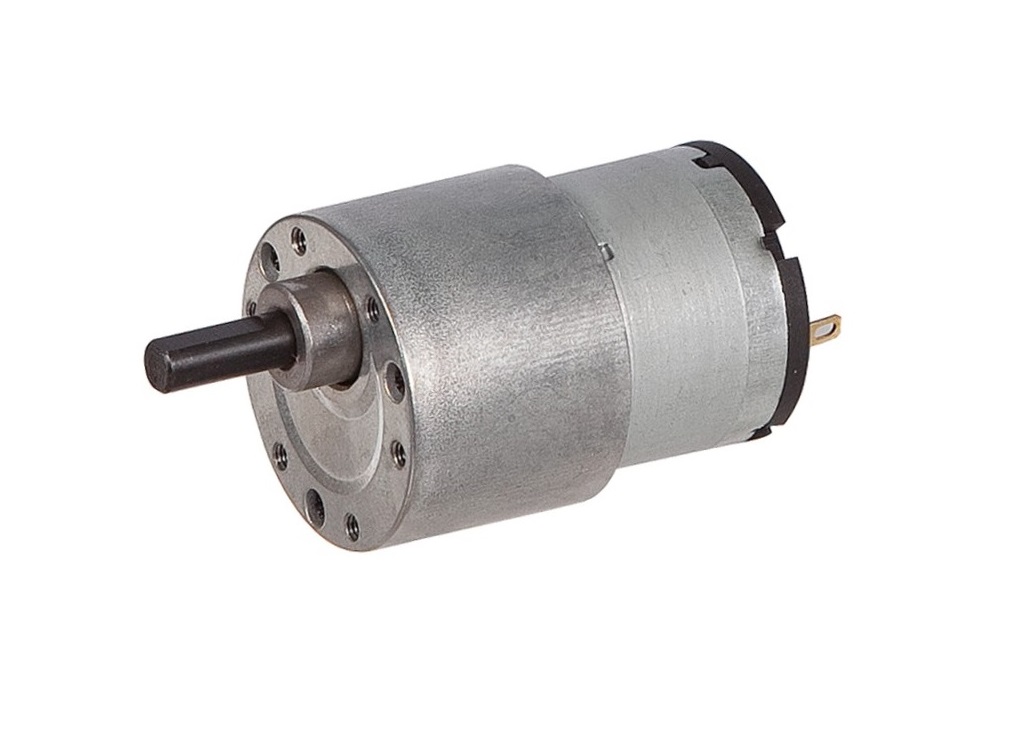

PS37/ZL3323 37mm Carbon Brushed Micro DC inline gear motors
Product name | PS37/ZL3323 37mm Carbon Brushed Micro DC inline gear motors | ||||||
Rated torque | 0.008N.m ~ 0.8N.m | ||||||
Bearing at output shaft | Ball bearing | ||||||
Gear housing material | Metal; power metal | ||||||
Gear material | Steel, powdered metal, plastic, brass | ||||||
Rotation direction | CW / CCW reversible | ||||||
No-load Noise (dB) | Within 45dB | ||||||
Available IP rating | IP54, IP55, IP65 | ||||||
Accessories | Encoder, brake, cable connector | ||||||
Typical applications | Household appliances, AUDIO-visual products, office equipment, massage health care, beauty fitness equipment, medical equipment, high-end toys, gifts, electric daily necessities, electric tools, automatic sprayers, auto automatic facilities, intelligent systems, automatic control and other industrial driving devices |
||||||
OEM & ODM products | Available customized technical specs., shaft & flange materials and dimensions, etc. |
Carbon brush DC motor parameters: | |||||||||
Motor model | Rated voltage | No load | Rated load | Stall | |||||
Current | Speed | Current | Speed | Torque | Output | Torque | Current | ||
V | mA | rpm | mA | rpm | mN.m | W | mN.m | mA | |
PS37/ZL3323-063000 | 6 | ≤27 | 3000 | ≤130 | 2600 | 1.5 | 0.41 | ≥11 | ≥630 |
PS37/ZL3323-123000 | 12 | ≤16 | 3000 | ≤70 | 2400 | 2 | 0.5 | ≥10 | ≥330 |
PS37/ZL3323-126000 | 12 | ≤54 | 6000 | ≤150 | 5500 | 1.5 | 0.86 | ≥18 | ≥1220 |
PS37/ZL3323-1212000 | 12 | ≤40 | 12000 | ≤135 | 9600 | 4.5 | 4.5 | ≥23 | ≥3780 |
PS37/ZL3323-244500 | 24 | ≤25 | 4500 | ≤90 | 3400 | 3.3 | 1.4 | ≥16 | ≥350 |
PS37/ZL3323-246000 | 24 | ≤30 | 6000 | ≤200 | 4800 | 3.8 | 2.3 | ≥19 | ≥660 |
PS37/ZL3323-249000 | 24 | ≤54 | 9000 | ≤200 | 7200 | 4.7 | 3.5 | ≥23 | ≥1670 |
Gear motor parameters: | |||||||
Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
PS37/ZL3323-063000 | 6.8 | 2 | 80% | 18 | 441.2 | 382.4 | 8.2 |
10 | 2 | 80% | 18 | 300.0 | 260.0 | 12.0 | |
20 | 3 | 73% | 21.5 | 150.0 | 130.0 | 21.9 | |
30 | 3 | 73% | 21.5 | 100.0 | 86.7 | 32.9 | |
61 | 4 | 65% | 24 | 49.2 | 42.6 | 59.5 | |
90 | 4 | 65% | 24 | 33.3 | 28.9 | 87.8 | |
107 | 5 | 59% | 26.5 | 28.0 | 24.3 | 94.7 | |
122 | 5 | 59% | 26.5 | 24.6 | 21.3 | 108.0 | |
184 | 5 | 59% | 26.5 | 16.3 | 14.1 | 162.8 | |
270 | 5 | 59% | 26.5 | 11.1 | 9.6 | 239.0 | |
311 | 6 | 53% | 29 | 9.6 | 8.4 | 247.2 | |
414 | 6 | 53% | 29 | 7.2 | 6.3 | 329.1 | |
552 | 6 | 53% | 29 | 5.4 | 4.7 | 438.8 | |
810 | 6 | 48% | 29 | 3.7 | 3.2 | 583.2 | |
1243 | 7 | 48% | 31.5 | 2.4 | 2.1 | 800.0 | |
1657 | 7 | 48% | 31.5 | 1.8 | 1.6 | 800.0 | |
2430 | 7 | 48% | 31.5 | 1.2 | 1.1 | 800.0 | |
Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
PS37/ZL3323-123000 | 6.8 | 2 | 80% | 18 | 441.2 | 352.9 | 10.9 |
10 | 2 | 80% | 18 | 300.0 | 240.0 | 16.0 | |
20 | 3 | 73% | 21.5 | 150.0 | 120.0 | 29.2 | |
30 | 3 | 73% | 21.5 | 100.0 | 80.0 | 43.8 | |
61 | 4 | 65% | 24 | 49.2 | 39.3 | 79.3 | |
90 | 4 | 65% | 24 | 33.3 | 26.7 | 117.0 | |
107 | 5 | 59% | 26.5 | 28.0 | 22.4 | 126.3 | |
122 | 5 | 59% | 26.5 | 24.6 | 19.7 | 144.0 | |
184 | 5 | 59% | 26.5 | 16.3 | 13.0 | 217.1 | |
270 | 5 | 59% | 26.5 | 11.1 | 8.9 | 318.6 | |
311 | 6 | 53% | 29 | 9.6 | 7.7 | 329.7 | |
414 | 6 | 53% | 29 | 7.2 | 5.8 | 438.8 | |
552 | 6 | 53% | 29 | 5.4 | 4.3 | 585.1 | |
810 | 6 | 48% | 29 | 3.7 | 3.0 | 777.6 | |
1243 | 7 | 48% | 31.5 | 2.4 | 1.9 | 800.0 | |
1657 | 7 | 48% | 31.5 | 1.8 | 1.4 | 800.0 | |
2430 | 7 | 48% | 31.5 | 1.2 | 1.0 | 800.0 | |
Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
PS37/ZL3323-126000 | 6.8 | 2 | 80% | 18 | 882.4 | 808.8 | 8.2 |
10 | 2 | 80% | 18 | 600.0 | 550.0 | 12.0 | |
20 | 3 | 73% | 21.5 | 300.0 | 275.0 | 21.9 | |
30 | 3 | 73% | 21.5 | 200.0 | 183.3 | 32.9 | |
61 | 4 | 65% | 24 | 98.4 | 90.2 | 59.5 | |
90 | 4 | 65% | 24 | 66.7 | 61.1 | 87.8 | |
107 | 5 | 59% | 26.5 | 56.1 | 51.4 | 94.7 | |
122 | 5 | 59% | 26.5 | 49.2 | 45.1 | 108.0 | |
184 | 5 | 59% | 26.5 | 32.6 | 29.9 | 162.8 | |
270 | 5 | 59% | 26.5 | 22.2 | 20.4 | 239.0 | |
311 | 6 | 53% | 29 | 19.3 | 17.7 | 247.2 | |
414 | 6 | 53% | 29 | 14.5 | 13.3 | 329.1 | |
552 | 6 | 53% | 29 | 10.9 | 10.0 | 438.8 | |
810 | 6 | 48% | 29 | 7.4 | 6.8 | 583.2 | |
1243 | 7 | 48% | 31.5 | 4.8 | 4.4 | 800.0 | |
1657 | 7 | 48% | 31.5 | 3.6 | 3.3 | 800.0 | |
2430 | 7 | 48% | 31.5 | 2.5 | 2.3 | 800.0 | |
Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
PS37/ZL3323-1212000 | 6.8 | 2 | 80% | 18 | 1764.7 | 1411.8 | 24.5 |
10 | 2 | 80% | 18 | 1200.0 | 960.0 | 36.0 | |
20 | 3 | 73% | 21.5 | 600.0 | 480.0 | 65.7 | |
30 | 3 | 73% | 21.5 | 400.0 | 320.0 | 98.6 | |
61 | 4 | 65% | 24 | 196.7 | 157.4 | 178.4 | |
90 | 4 | 65% | 24 | 133.3 | 106.7 | 263.3 | |
107 | 5 | 59% | 26.5 | 112.1 | 89.7 | 284.1 | |
122 | 5 | 59% | 26.5 | 98.4 | 78.7 | 323.9 | |
184 | 5 | 59% | 26.5 | 65.2 | 52.2 | 488.5 | |
270 | 5 | 59% | 26.5 | 44.4 | 35.6 | 716.9 | |
311 | 6 | 53% | 29 | 38.6 | 30.9 | 741.7 | |
414 | 6 | 53% | 29 | 29.0 | 23.2 | 800.0 | |
552 | 6 | 53% | 29 | 21.7 | 17.4 | 800.0 | |
810 | 6 | 48% | 29 | 14.8 | 11.9 | 800.0 | |
1243 | 7 | 48% | 31.5 | 9.7 | 7.7 | 800.0 | |
1657 | 7 | 48% | 31.5 | 7.2 | 5.8 | 800.0 | |
2430 | 7 | 48% | 31.5 | 4.9 | 4.0 | 800.0 | |
Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
PS37/ZL3323-244500 | 6.8 | 2 | 80% | 18 | 661.8 | 500.0 | 18.0 |
10 | 2 | 80% | 18 | 450.0 | 340.0 | 26.4 | |
20 | 3 | 73% | 21.5 | 225.0 | 170.0 | 48.2 | |
30 | 3 | 73% | 21.5 | 150.0 | 113.3 | 72.3 | |
61 | 4 | 65% | 24 | 73.8 | 55.7 | 130.8 | |
90 | 4 | 65% | 24 | 50.0 | 37.8 | 193.1 | |
107 | 5 | 59% | 26.5 | 42.1 | 31.8 | 208.3 | |
122 | 5 | 59% | 26.5 | 36.9 | 27.9 | 237.5 | |
184 | 5 | 59% | 26.5 | 24.5 | 18.5 | 358.2 | |
270 | 5 | 59% | 26.5 | 16.7 | 12.6 | 525.7 | |
311 | 6 | 53% | 29 | 14.5 | 10.9 | 543.9 | |
414 | 6 | 53% | 29 | 10.9 | 8.2 | 724.1 | |
552 | 6 | 53% | 29 | 8.2 | 6.2 | 800.0 | |
810 | 6 | 48% | 29 | 5.6 | 4.2 | 800.0 | |
1243 | 7 | 48% | 31.5 | 3.6 | 2.7 | 800.0 | |
1657 | 7 | 48% | 31.5 | 2.7 | 2.1 | 800.0 | |
2430 | 7 | 48% | 31.5 | 1.9 | 1.4 | 800.0 | |
Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
PS37/ZL3323-246000 | 6.8 | 2 | 80% | 18 | 882.4 | 705.9 | 20.7 |
10 | 2 | 80% | 18 | 600.0 | 480.0 | 30.4 | |
20 | 3 | 73% | 21.5 | 300.0 | 240.0 | 55.5 | |
30 | 3 | 73% | 21.5 | 200.0 | 160.0 | 83.2 | |
61 | 4 | 65% | 24 | 98.4 | 78.7 | 150.7 | |
90 | 4 | 65% | 24 | 66.7 | 53.3 | 222.3 | |
107 | 5 | 59% | 26.5 | 56.1 | 44.9 | 239.9 | |
122 | 5 | 59% | 26.5 | 49.2 | 39.3 | 273.5 | |
184 | 5 | 59% | 26.5 | 32.6 | 26.1 | 412.5 | |
270 | 5 | 59% | 26.5 | 22.2 | 17.8 | 605.3 | |
311 | 6 | 53% | 29 | 19.3 | 15.4 | 626.4 | |
414 | 6 | 53% | 29 | 14.5 | 11.6 | 800.0 | |
552 | 6 | 53% | 29 | 10.9 | 8.7 | 800.0 | |
810 | 6 | 48% | 29 | 7.4 | 5.9 | 800.0 | |
1243 | 7 | 48% | 31.5 | 4.8 | 3.9 | 800.0 | |
1657 | 7 | 48% | 31.5 | 3.6 | 2.9 | 800.0 | |
2430 | 7 | 48% | 31.5 | 2.5 | 2.0 | 800.0 | |
Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
PS37/ZL3323-249000 | 6.8 | 2 | 80% | 18 | 1323.5 | 1058.8 | 25.6 |
10 | 2 | 80% | 18 | 900.0 | 720.0 | 37.6 | |
20 | 3 | 73% | 21.5 | 450.0 | 360.0 | 68.6 | |
30 | 3 | 73% | 21.5 | 300.0 | 240.0 | 102.9 | |
61 | 4 | 65% | 24 | 147.5 | 118.0 | 186.4 | |
90 | 4 | 65% | 24 | 100.0 | 80.0 | 275.0 | |
107 | 5 | 59% | 26.5 | 84.1 | 67.3 | 296.7 | |
122 | 5 | 59% | 26.5 | 73.8 | 59.0 | 338.3 | |
184 | 5 | 59% | 26.5 | 48.9 | 39.1 | 510.2 | |
270 | 5 | 59% | 26.5 | 33.3 | 26.7 | 748.7 | |
311 | 6 | 53% | 29 | 28.9 | 23.2 | 774.7 | |
414 | 6 | 53% | 29 | 21.7 | 17.4 | 800.0 | |
552 | 6 | 53% | 29 | 16.3 | 13.0 | 800.0 | |
810 | 6 | 48% | 29 | 11.1 | 8.9 | 800.0 | |
1243 | 7 | 48% | 31.5 | 7.2 | 5.8 | 800.0 | |
1657 | 7 | 48% | 31.5 | 5.4 | 4.3 | 800.0 | |
2430 | 7 | 48% | 31.5 | 3.7 | 3.0 | 800.0 |
