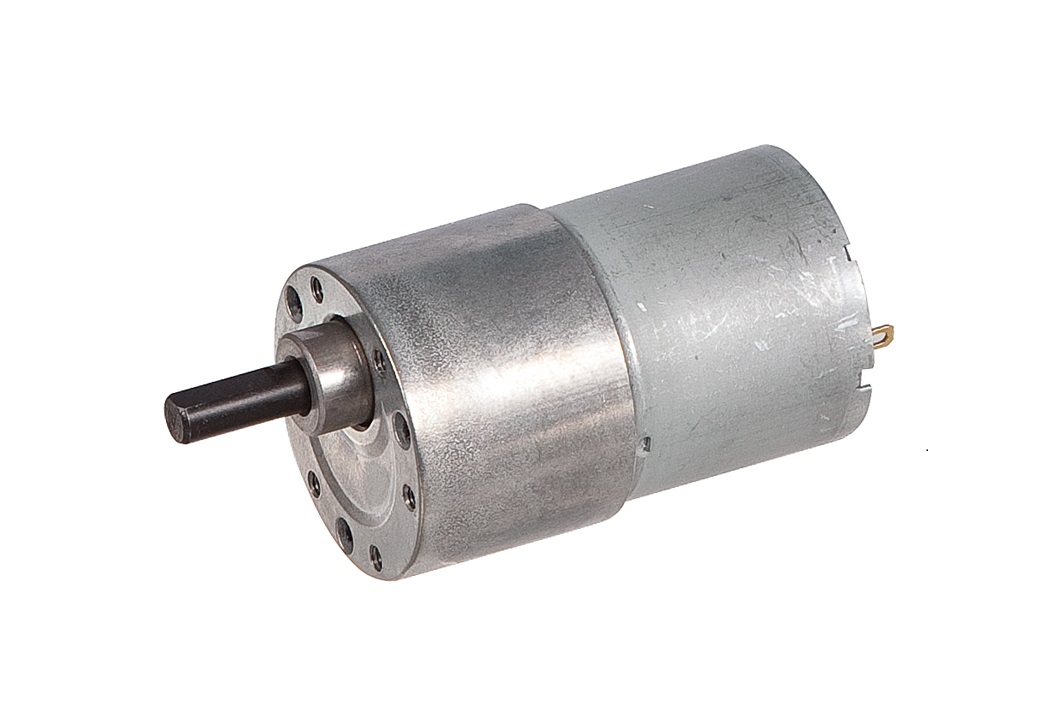

PS37/ZL3525 37mm Carbon Brushed Micro DC inline gear motors

Product name PS37/ZL3525 37mm Carbon Brushed Micro DC inline gear motors
Rated voltage 3V ~ 24V DC
Rated speed 1 ~ 1500rpm
Rated torque 0.008N.m ~ 0.8N.m
Bearing at output shaft Ball  bearing
Gear housing material Metal; power metal
Gear material Steel, powdered metal, plastic, brass
Rotation direction CW / CCW reversible
No-load Noise (dB) Within 45dB
Available IP rating IP54, IP55, IP65
Accessories Encoder, brake, cable connector
Typical applications Household appliances, AUDIO-visual products, office equipment, massage health care, beauty fitness equipment, medical equipment, high-end toys, gifts,
electric daily necessities, electric tools, automatic sprayers, auto automatic facilities, intelligent systems, automatic control and other industrial driving devices
OEM & ODM products Available customized technical specs., shaft & flange materials and dimensions, etc.



Carbon brush DC motor parameters:
Motor model Rated voltage No load Rated load Stall
Current Speed Current Speed Torque Output Torque Current
V mA rpm mA rpm mN.m W mN.m mA
PS37/ZL3530-126000 12 ≤47 6000 ≤269 4800 4 2 ≥170 ≥1140
PS37/ZL3530-1211000 12 ≤131 11000 ≤755 8800 5.6 5.2 ≥240 ≥3210
PS37/ZL3530-243000 24 ≤12 3000 ≤38 2400 2.6 0.7 ≥110 ≥160
PS37/ZL3530-244500 24 ≤15 4500 ≤84 3600 3.8 1.4 ≥160 ≥360
PS37/ZL3530-246000 24 ≤30 6000 ≤111 4800 4 2 ≥170 ≥470



Gear motor parameters:
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
mN.m
S37/ZL3525-126000 6.8 2 80% 18 882.4  705.9  21.8
10 2 80% 18 600.0  480.0  32.0
20 3 73% 21.5 300.0  240.0  58.4
30 3 73% 21.5 200.0  160.0  87.6
61 4 65% 24 98.4  78.7  158.6
90 4 65% 24 66.7  53.3  234.0
107 5 59% 26.5 56.1  44.9  252.5
122 5 59% 26.5 49.2  39.3  287.9
184 5 59% 26.5 32.6  26.1  434.2
270 5 59% 26.5 22.2  17.8  637.2
311 6 53% 29 19.3  15.4  659.3
414 6 53% 29 14.5  11.6  800.0
552 6 53% 29 10.9  8.7  800.0
810 6 48% 29 7.4  5.9  800.0
1243 7 48% 31.5 4.8  3.9  800.0
1657 7 48% 31.5 3.6  2.9  800.0
2430 7 48% 31.5 2.5  2.0  800.0
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
mN.m
PS37/ZL3525-1211000 6.8 2 80% 18 1617.6  1294.1  30.5
10 2 80% 18 1100.0  880.0  44.8
20 3 73% 21.5 550.0  440.0  81.8
30 3 73% 21.5 366.7  293.3  122.6
61 4 65% 24 180.3  144.3  222.0
90 4 65% 24 122.2  97.8  327.6
107 5 59% 26.5 102.8  82.2  353.5
122 5 59% 26.5 90.2  72.1  403.1
184 5 59% 26.5 59.8  47.8  607.9
270 5 59% 26.5 40.7  32.6  800.0
311 6 53% 29 35.4  28.3  800.0
414 6 53% 29 26.6  21.3  800.0
552 6 53% 29 19.9  15.9  800.0
810 6 48% 29 13.6  10.9  800.0
1243 7 48% 31.5 8.8  7.1  800.0
1657 7 48% 31.5 6.6  5.3  800.0
2430 7 48% 31.5 4.5  3.6  800.0
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
mN.m
PS37/ZL3525-243000 6.8 2 80% 18 441.2  352.9  14.1
10 2 80% 18 300.0  240.0  20.8
20 3 73% 21.5 150.0  120.0  38.0
30 3 73% 21.5 100.0  80.0  56.9
61 4 65% 24 49.2  39.3  103.1
90 4 65% 24 33.3  26.7  152.1
107 5 59% 26.5 28.0  22.4  164.1
122 5 59% 26.5 24.6  19.7  187.1
184 5 59% 26.5 16.3  13.0  282.3
270 5 59% 26.5 11.1  8.9  414.2
311 6 53% 29 9.6  7.7  428.6
414 6 53% 29 7.2  5.8  570.5
552 6 53% 29 5.4  4.3  760.7
810 6 48% 29 3.7  3.0  800.0
1243 7 48% 31.5 2.4  1.9  800.0
1657 7 48% 31.5 1.8  1.4  800.0
2430 7 48% 31.5 1.2  1.0  800.0
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
mN.m
PS37/ZL3525-244500 6.8 2 80% 18 661.8  529.4  20.7
10 2 80% 18 450.0  360.0  30.4
20 3 73% 21.5 225.0  180.0  55.5
30 3 73% 21.5 150.0  120.0  83.2
61 4 65% 24 73.8  59.0  150.7
90 4 65% 24 50.0  40.0  222.3
107 5 59% 26.5 42.1  33.6  239.9
122 5 59% 26.5 36.9  29.5  273.5
184 5 59% 26.5 24.5  19.6  412.5
270 5 59% 26.5 16.7  13.3  605.3
311 6 53% 29 14.5  11.6  626.4
414 6 53% 29 10.9  8.7  800.0
552 6 53% 29 8.2  6.5  800.0
810 6 48% 29 5.6  4.4  800.0
1243 7 48% 31.5 3.6  2.9  800.0
1657 7 48% 31.5 2.7  2.2  800.0
2430 7 48% 31.5 1.9  1.5  800.0
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
mN.m
PS37/ZL3530-246000 6.8 2 80% 18 882.4  705.9  21.8
10 2 80% 18 600.0  480.0  32.0
20 3 73% 21.5 300.0  240.0  58.4
30 3 73% 21.5 200.0  160.0  87.6
61 4 65% 24 98.4  78.7  158.6
90 4 65% 24 66.7  53.3  234.0
107 5 59% 26.5 56.1  44.9  252.5
122 5 59% 26.5 49.2  39.3  287.9
184 5 59% 26.5 32.6  26.1  434.2
270 5 59% 26.5 22.2  17.8  637.2
311 6 53% 29 19.3  15.4  659.3
414 6 53% 29 14.5  11.6  800.0
552 6 53% 29 10.9  8.7  800.0
810 6 48% 29 7.4  5.9  800.0
1243 7 48% 31.5 4.8  3.9  800.0
1657 7 48% 31.5 3.6  2.9  800.0
2430 7 48% 31.5 2.5  2.0  800.0
