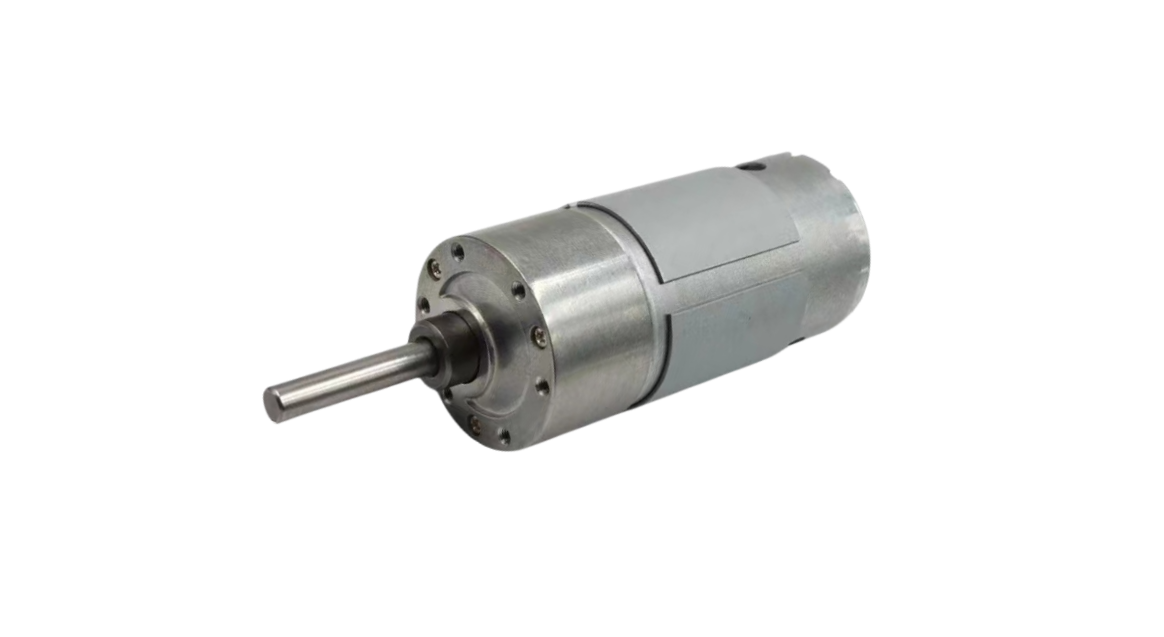

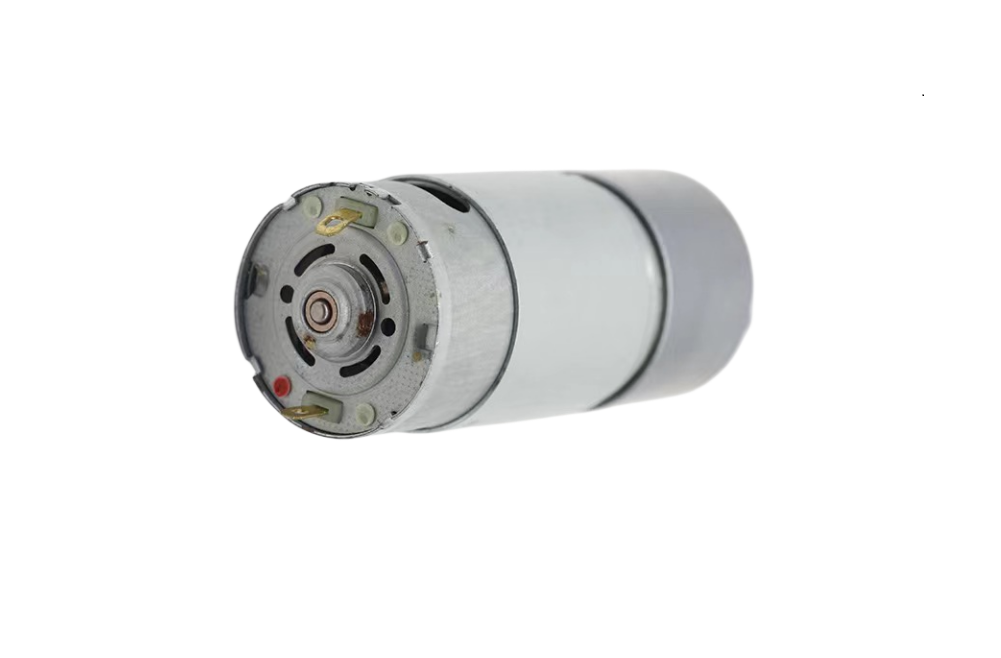

PS37/ZL3658 37mm Carbon Brushed Micro DC inline gear motors
| Product name | PS37/ZL3658 37mm Carbon Brushed Micro DC inline gear motors | ||||||
| Rated voltage | 3V ~ 24V DC | ||||||
| Rated speed | 1 ~ 1500rpm | ||||||
| Rated torque | 0.008N.m ~ 1.0N.m | ||||||
| Bearing at output shaft | Ball bearing | ||||||
| Gear housing material | Metal; power metal | ||||||
| Gear material | Steel, powdered metal, plastic, brass | ||||||
| Rotation direction | CW / CCW reversible | ||||||
| No-load Noise (dB) | Within 45dB | ||||||
| Available IP rating | IP54, IP55, IP65 | ||||||
| Accessories | Encoder, brake, cable connector | ||||||
| Typical applications | Household appliances, AUDIO-visual products, office equipment, massage health care, beauty fitness equipment, medical equipment, high-end toys, gifts, electric daily necessities, electric tools, automatic sprayers, auto automatic facilities, intelligent systems, automatic control and other industrial driving devices |
||||||
| OEM & ODM products | Available customized technical specs., shaft & flange materials and dimensions, etc. | ||||||
| Carbon brush DC motor parameters: | |||||||||
| Motor model | Rated voltage | No load | Rated load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Torque | Current | ||
| V | mA | rpm | mA | rpm | mN.m | W | mN.m | mA | |
| PS37/ZL3658-066000 | 6 | ≤858 | 6000 | ≤2250 | 4680 | 15 | 7.4 | ≥70 | ≥10000 |
| PS37/ZL3658-123000 | 12 | ≤171 | 3000 | ≤561 | 2400 | 12.6 | 3.2 | ≥63 | ≥2390 |
| PS37/ZL3658-126000 | 12 | ≤350 | 6000 | ≤2300 | 4500 | 28 | 13.2 | ≥120 | ≥10230 |
| PS37/ZL3658-128500 | 12 | ≤638 | 8500 | ≤2800 | 6450 | 30 | 20.3 | ≥140 | ≥11900 |
| PS37/ZL3658-243000 | 24 | ≤120 | 3000 | ≤336 | 2400 | 19.8 | 5 | ≥99 | ≥1430 |
| PS37/ZL3658-244500 | 24 | ≤174 | 4500 | ≤620 | 3600 | 30.9 | 11.7 | ≥150 | ≥3630 |
| PS37/ZL3658-246000 | 24 | ≤270 | 6000 | ≤800 | 5370 | 42 | 23.6 | ≥200 |
≥5820 |
| Gear motor parameters: | |||||||
| Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
| S37/ZL3658-066000 | 6.8 | 2 | 80% | 18 | 661.8 | 529.4 | 168.1 |
| 10 | 2 | 80% | 18 | 450.0 | 360.0 | 247.2 | |
| 20 | 3 | 73% | 21.5 | 225.0 | 180.0 | 451.1 | |
| 30 | 3 | 73% | 21.5 | 150.0 | 120.0 | 676.7 | |
| 61 | 4 | 65% | 24 | 73.8 | 59.0 | 1000.0 | |
| 90 | 4 | 65% | 24 | 50.0 | 40.0 | 1000.0 | |
| 107 | 5 | 59% | 26.5 | 42.1 | 33.6 | 1000.0 | |
| 122 | 5 | 59% | 26.5 | 36.9 | 29.5 | 1000.0 | |
| 184 | 5 | 59% | 26.5 | 24.5 | 19.6 | 1000.0 | |
| 270 | 5 | 59% | 26.5 | 16.7 | 13.3 | 1000.0 | |
| 311 | 6 | 53% | 29 | 14.5 | 11.6 | 1000.0 | |
| 414 | 6 | 53% | 29 | 10.9 | 8.7 | 1000.0 | |
| 552 | 6 | 53% | 29 | 8.2 | 6.5 | 1000.0 | |
| 810 | 6 | 48% | 29 | 5.6 | 4.4 | 1000.0 | |
| 1243 | 7 | 48% | 31.5 | 3.6 | 2.9 | 1000.0 | |
| 1657 | 7 | 48% | 31.5 | 2.7 | 2.2 | 1000.0 | |
| 2430 | 7 | 48% | 31.5 | 1.9 | 1.5 | 1000.0 | |
| Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
| PS37/ZL3658-123000 | 6.8 | 2 | 80% | 18 | 441.2 | 352.9 | 68.5 |
| 10 | 2 | 80% | 18 | 300.0 | 240.0 | 100.8 | |
| 20 | 3 | 73% | 21.5 | 150.0 | 120.0 | 184.0 | |
| 30 | 3 | 73% | 21.5 | 100.0 | 80.0 | 275.9 | |
| 61 | 4 | 65% | 24 | 49.2 | 39.3 | 499.6 | |
| 90 | 4 | 65% | 24 | 33.3 | 26.7 | 737.1 | |
| 107 | 5 | 59% | 26.5 | 28.0 | 22.4 | 795.4 | |
| 122 | 5 | 59% | 26.5 | 24.6 | 19.7 | 906.9 | |
| 184 | 5 | 59% | 26.5 | 16.3 | 13.0 | 1000.0 | |
| 270 | 5 | 59% | 26.5 | 11.1 | 8.9 | 1000.0 | |
| 311 | 6 | 53% | 29 | 9.6 | 7.7 | 1000.0 | |
| 414 | 6 | 53% | 29 | 7.2 | 5.8 | 1000.0 | |
| 552 | 6 | 53% | 29 | 5.4 | 4.3 | 1000.0 | |
| 810 | 6 | 48% | 29 | 3.7 | 3.0 | 1000.0 | |
| 1243 | 7 | 48% | 31.5 | 2.4 | 1.9 | 1000.0 | |
| 1657 | 7 | 48% | 31.5 | 1.8 | 1.4 | 1000.0 | |
| 2430 | 7 | 48% | 31.5 | 1.2 | 1.0 | 1000.0 | |
| Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
| PS37/ZL3658-126000 | 6.8 | 2 | 80% | 18 | 882.4 | 661.8 | 152.3 |
| 10 | 2 | 80% | 18 | 600.0 | 450.0 | 224.0 | |
| 20 | 3 | 73% | 21.5 | 300.0 | 225.0 | 408.8 | |
| 30 | 3 | 73% | 21.5 | 200.0 | 150.0 | 613.2 | |
| 61 | 4 | 65% | 24 | 98.4 | 73.8 | 1000.0 | |
| 90 | 4 | 65% | 24 | 66.7 | 50.0 | 1000.0 | |
| 107 | 5 | 59% | 26.5 | 56.1 | 42.1 | 1000.0 | |
| 122 | 5 | 59% | 26.5 | 49.2 | 36.9 | 1000.0 | |
| 184 | 5 | 59% | 26.5 | 32.6 | 24.5 | 1000.0 | |
| 270 | 5 | 59% | 26.5 | 22.2 | 16.7 | 1000.0 | |
| 311 | 6 | 53% | 29 | 19.3 | 14.5 | 1000.0 | |
| 414 | 6 | 53% | 29 | 14.5 | 10.9 | 1000.0 | |
| 552 | 6 | 53% | 29 | 10.9 | 8.2 | 1000.0 | |
| 810 | 6 | 48% | 29 | 7.4 | 5.6 | 1000.0 | |
| 1243 | 7 | 48% | 31.5 | 4.8 | 3.6 | 1000.0 | |
| 1657 | 7 | 48% | 31.5 | 3.6 | 2.7 | 1000.0 | |
| 2430 | 7 | 48% | 31.5 | 2.5 | 1.9 | 1000.0 | |
| Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
| PS37/ZL3658-128500 | 6.8 | 2 | 80% | 18 | 1250.0 | 948.5 | 163.2 |
| 10 | 2 | 80% | 18 | 850.0 | 645.0 | 240.0 | |
| 20 | 3 | 73% | 21.5 | 425.0 | 322.5 | 438.0 | |
| 30 | 3 | 73% | 21.5 | 283.3 | 215.0 | 657.0 | |
| 61 | 4 | 65% | 24 | 139.3 | 105.7 | 1000.0 | |
| 90 | 4 | 65% | 24 | 94.4 | 71.7 | 1000.0 | |
| 107 | 5 | 59% | 26.5 | 79.4 | 60.3 | 1000.0 | |
| 122 | 5 | 59% | 26.5 | 69.7 | 52.9 | 1000.0 | |
| 184 | 5 | 59% | 26.5 | 46.2 | 35.1 | 1000.0 | |
| 270 | 5 | 59% | 26.5 | 31.5 | 23.9 | 1000.0 | |
| 311 | 6 | 53% | 29 | 27.3 | 20.7 | 1000.0 | |
| 414 | 6 | 53% | 29 | 20.5 | 15.6 | 1000.0 | |
| 552 | 6 | 53% | 29 | 15.4 | 11.7 | 1000.0 | |
| 810 | 6 | 48% | 29 | 10.5 | 8.0 | 1000.0 | |
| 1243 | 7 | 48% | 31.5 | 6.8 | 5.2 | 1000.0 | |
| 1657 | 7 | 48% | 31.5 | 5.1 | 3.9 | 1000.0 | |
| 2430 | 7 | 48% | 31.5 | 3.5 | 2.7 | 1000.0 | |
| Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
| PS37/ZL3658-243000 | 6.8 | 2 | 80% | 18 | 441.2 | 352.9 | 107.7 |
| 10 | 2 | 80% | 18 | 300.0 | 240.0 | 158.4 | |
| 20 | 3 | 73% | 21.5 | 150.0 | 120.0 | 289.1 | |
| 30 | 3 | 73% | 21.5 | 100.0 | 80.0 | 433.6 | |
| 61 | 4 | 65% | 24 | 49.2 | 39.3 | 785.1 | |
| 90 | 4 | 65% | 24 | 33.3 | 26.7 | 1000.0 | |
| 107 | 5 | 59% | 26.5 | 28.0 | 22.4 | 1000.0 | |
| 122 | 5 | 59% | 26.5 | 24.6 | 19.7 | 1000.0 | |
| 184 | 5 | 59% | 26.5 | 16.3 | 13.0 | 1000.0 | |
| 270 | 5 | 59% | 26.5 | 11.1 | 8.9 | 1000.0 | |
| 311 | 6 | 53% | 29 | 9.6 | 7.7 | 1000.0 | |
| 414 | 6 | 53% | 29 | 7.2 | 5.8 | 1000.0 | |
| 552 | 6 | 53% | 29 | 5.4 | 4.3 | 1000.0 | |
| 810 | 6 | 48% | 29 | 3.7 | 3.0 | 1000.0 | |
| 1243 | 7 | 48% | 31.5 | 2.4 | 1.9 | 1000.0 | |
| 1657 | 7 | 48% | 31.5 | 1.8 | 1.4 | 1000.0 | |
| 2430 | 7 | 48% | 31.5 | 1.2 | 1.0 | 1000.0 | |
| Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
| PS37/ZL3658-244500 | 6.8 | 2 | 80% | 18 | 882.4 | 661.8 | 152.3 |
| 10 | 2 | 80% | 18 | 600.0 | 450.0 | 224.0 | |
| 20 | 3 | 73% | 21.5 | 300.0 | 225.0 | 408.8 | |
| 30 | 3 | 73% | 21.5 | 200.0 | 150.0 | 613.2 | |
| 61 | 4 | 65% | 24 | 98.4 | 73.8 | 1000.0 | |
| 90 | 4 | 65% | 24 | 66.7 | 50.0 | 1000.0 | |
| 107 | 5 | 59% | 26.5 | 56.1 | 42.1 | 1000.0 | |
| 122 | 5 | 59% | 26.5 | 49.2 | 36.9 | 1000.0 | |
| 184 | 5 | 59% | 26.5 | 32.6 | 24.5 | 1000.0 | |
| 270 | 5 | 59% | 26.5 | 22.2 | 16.7 | 1000.0 | |
| 311 | 6 | 53% | 29 | 19.3 | 14.5 | 1000.0 | |
| 414 | 6 | 53% | 29 | 14.5 | 10.9 | 1000.0 | |
| 552 | 6 | 53% | 29 | 10.9 | 8.2 | 1000.0 | |
| 810 | 6 | 48% | 29 | 7.4 | 5.6 | 1000.0 | |
| 1243 | 7 | 48% | 31.5 | 4.8 | 3.6 | 1000.0 | |
| 1657 | 7 | 48% | 31.5 | 3.6 | 2.7 | 1000.0 | |
| 2430 | 7 | 48% | 31.5 | 2.5 | 1.9 | 1000.0 | |
| Motor type | Gear ratio | Gear stage | Gearbox efficiency | Gearbox length (L) mm |
No-load speed rpm |
Rated speed rpm |
Rated torque mN.m |
| PS37/ZL3658-246000 | 6.8 | 2 | 80% | 18 | 882.4 | 789.7 | 228.5 |
| 10 | 2 | 80% | 18 | 600.0 | 537.0 | 336.0 | |
| 20 | 3 | 73% | 21.5 | 300.0 | 268.5 | 613.2 | |
| 30 | 3 | 73% | 21.5 | 200.0 | 179.0 | 919.8 | |
| 61 | 4 | 65% | 24 | 98.4 | 88.0 | 1000.0 | |
| 90 | 4 | 65% | 24 | 66.7 | 59.7 | 1000.0 | |
| 107 | 5 | 59% | 26.5 | 56.1 | 50.2 | 1000.0 | |
| 122 | 5 | 59% | 26.5 | 49.2 | 44.0 | 1000.0 | |
| 184 | 5 | 59% | 26.5 | 32.6 | 29.2 | 1000.0 | |
| 270 | 5 | 59% | 26.5 | 22.2 | 19.9 | 1000.0 | |
| 311 | 6 | 53% | 29 | 19.3 | 17.3 | 1000.0 | |
| 414 | 6 | 53% | 29 | 14.5 | 13.0 | 1000.0 | |
| 552 | 6 | 53% | 29 | 10.9 | 9.7 | 1000.0 | |
| 810 | 6 | 48% | 29 | 7.4 | 6.6 | 1000.0 | |
| 1243 | 7 | 48% | 31.5 | 4.8 | 4.3 | 1000.0 | |
| 1657 | 7 | 48% | 31.5 | 3.6 | 3.2 | 1000.0 | |
| 2430 | 7 | 48% | 31.5 | 2.5 | 2.2 | 1000.0 | |
