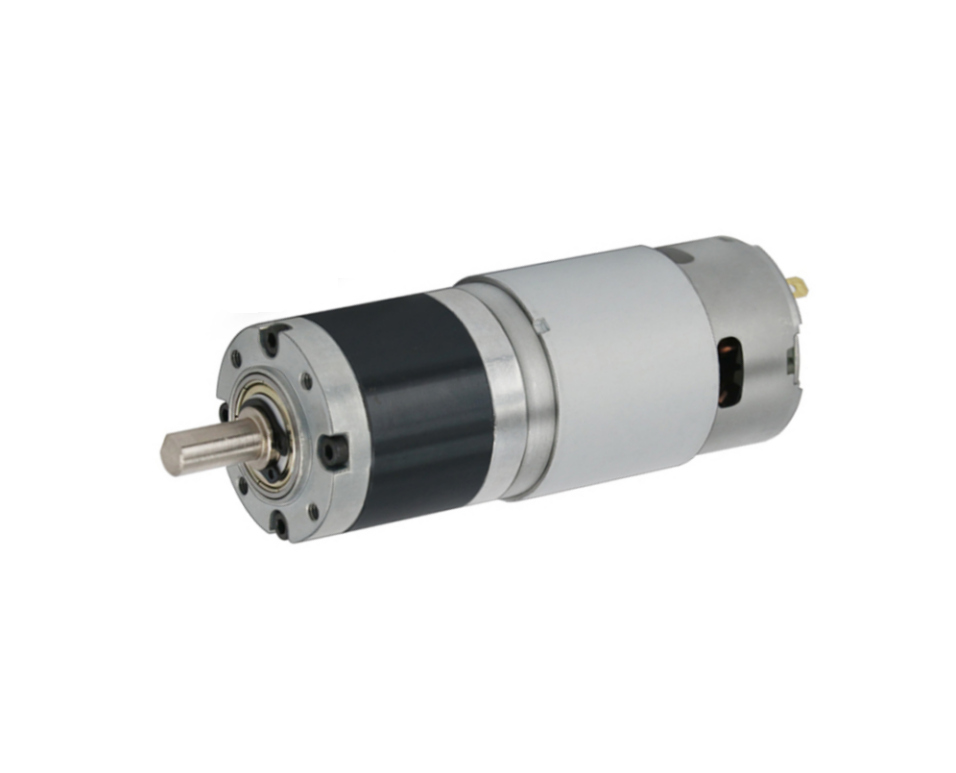

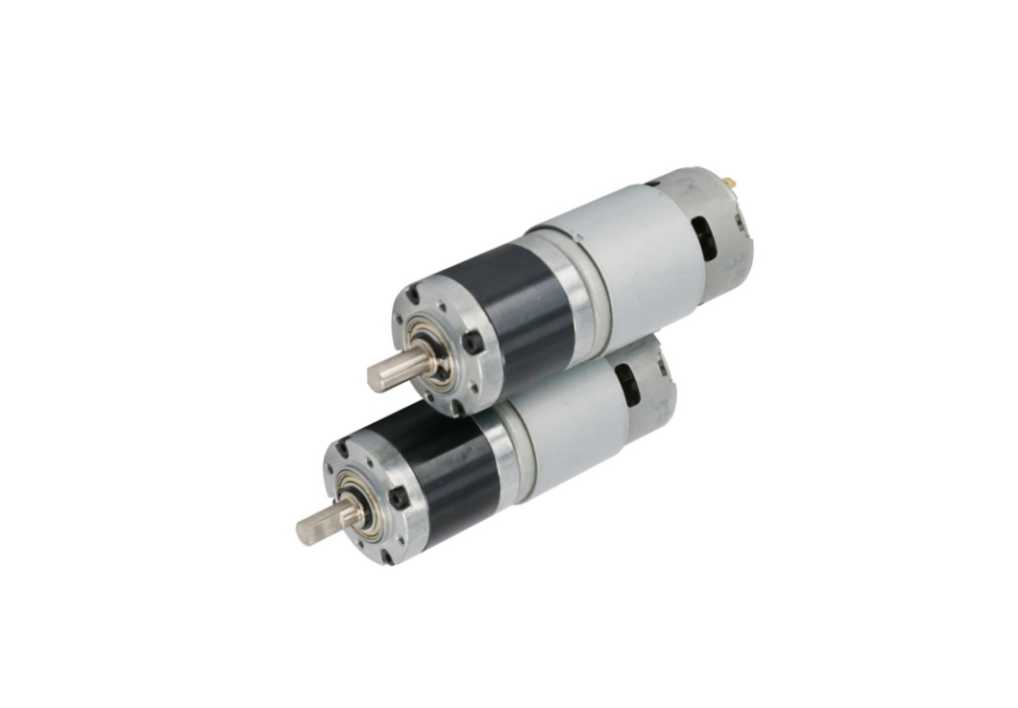

PS42/ZL4266 42mm Carbon Brushed Micro DC Planetary gear motor

Product name PS42/ZL4266 42mm Carbon Brushed Micro DC Planetary gear motors
Rated voltage 3V ~ 24V DC
Rated speed 1 ~ 1500rpm
Rated torque 0.1N.m ~ 15N.m
Bearing at output shaft Ball  bearing
Gear housing material Metal; power metal
Gear material Steel, powdered metal, plastic, brass
Rotation direction CW / CCW reversible
No-load Noise (dB) Within 45dB
Available IP rating IP54, IP55, IP65
Accessories Encoder, brake, cable connector
Typical applications Household appliances, AUDIO-visual products, office equipment, massage health care, beauty fitness equipment, medical equipment, high-end toys, gifts,
electric daily necessities, electric tools, automatic sprayers, auto automatic facilities, intelligent systems, automatic control and other industrial driving devices
OEM & ODM products Available customized technical specs., shaft & flange materials and dimensions, etc.



Carbon brush DC motor parameters:
Motor model Rated voltage No load Rated load Stall
Current Speed Current Speed Torque Output Torque Current
V mA rpm mA rpm mN.m W mN.m mA
PS42/ZL4266-123000 12 ≤220 3000 ≤1000 2200 35 7.7 ≥140 ≥3500
PS42/ZL4266-124500 12 ≤450 4500 ≤2000 3300 50 16.5 ≥200 ≥6500
PS42/ZL4266-126000 12 ≤900 6000 ≤4000 4500 75 34.5 ≥300 ≥13000
PS42/ZL4266-243000 24 ≤110 3000 ≤500 2200 35 7.7 ≥140 ≥1800
PS42/ZL4266-244500 24 ≤230 4500 ≤1000 3300 50 16.5 ≥200 ≥3300
PS42/ZL4266-246000 24 ≤450 6000 ≤2000 4500 75 34.5 ≥300 ≥7000



Gear motor parameters:
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
N.m
PS42/ZL4266-123000 3.7 2 90% 33.5 810.8  594.6  0.12
5 2 90% 33.5 600.0  440.0  0.16
13 3 81% 43.5 230.8  169.2  0.37
18 3 81% 43.5 166.7  122.2  0.51
25 4 81% 43.5 120.0  88.0  0.71
49 4 73% 53.5 61.2  44.9  1.25
67 5 73% 53.5 44.8  32.8  1.71
92 5 73% 53.5 32.6  23.9  2.35
125 5 73% 53.5 24.0  17.6  3.19
181 5 65% 63.5 16.6  12.2  4.12
336 6 65% 63.5 8.9  6.5  7.64
458 6 65% 63.5 6.6  4.8  10.42
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
N.m
PS42/ZL4266-124500 3.7 2 90% 33.5 1216  892  0.17
5 2 90% 33.5 900  660  0.23
13 3 81% 43.5 346  254  0.53
18 3 81% 43.5 250  183  0.73
25 4 81% 43.5 180  132  1.01
49 4 73% 53.5 92  67  1.79
67 5 73% 53.5 67  49  2.45
92 5 73% 53.5 49  36  3.36
125 5 73% 53.5 36  26  4.56
181 5 65% 63.5 25  18  5.88
336 6 65% 63.5 13  10  10.92
458 6 65% 63.5 10  7  14.89
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
N.m
PS42/ZL4266-126000 3.7 2 90% 33.5 1622  1216  0.25
5 2 90% 33.5 1200  900  0.34
13 3 81% 43.5 462  346  0.79
18 3 81% 43.5 333  250  1.09
25 4 81% 43.5 240  180  1.52
49 4 73% 53.5 122  92  2.68
67 5 73% 53.5 90  67  3.67
92 5 73% 53.5 65  49  5.04
125 5 73% 53.5 48  36  6.84
181 5 65% 63.5 33  25  8.82
336 6 65% 63.5 18  13  15.00
458 6 65% 63.5 13  10  15.00
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
N.m
PS42/ZL4266-243000 3.7 2 90% 33.5 811  595  0.12
5 2 90% 33.5 600  440  0.16
13 3 81% 43.5 231  169  0.37
18 3 81% 43.5 167  122  0.51
25 4 81% 43.5 120  88  0.71
49 4 73% 53.5 61  45  1.25
67 5 73% 53.5 45  33  1.71
92 5 73% 53.5 33  24  2.35
125 5 73% 53.5 24  18  3.19
181 5 65% 63.5 17  12  4.12
336 6 65% 63.5 9  7  7.64
458 6 65% 63.5 7  5  10.42
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
N.m
PS42/ZL4266-244500 3.7 2 90% 33.5 1216  892  0.17
5 2 90% 33.5 900  660  0.23
13 3 81% 43.5 346  254  0.53
18 3 81% 43.5 250  183  0.73
25 4 81% 43.5 180  132  1.01
49 4 73% 53.5 92  67  1.79
67 5 73% 53.5 67  49  2.45
92 5 73% 53.5 49  36  3.36
125 5 73% 53.5 36  26  4.56
181 5 65% 63.5 25  18  5.88
336 6 65% 63.5 13  10  10.92
458 6 65% 63.5 10  7  14.89
Motor type Gear ratio Gear stage Gearbox efficiency Gearbox length
(L)
mm		 No-load speed
rpm		 Rated speed
 rpm		 Rated torque
mN.m
PS42/ZL4266-246000 3.7 2 90% 33.5 1622  1216  0.25
5 2 90% 33.5 1200  900  0.34
13 3 81% 43.5 462  346  0.79
18 3 81% 43.5 333  250  1.09
25 4 81% 43.5 240  180  1.52
49 4 73% 53.5 122  92  2.68
67 5 73% 53.5 90  67  3.67
92 5 73% 53.5 65  49  5.04
125 5 73% 53.5 48  36  6.84
181 5 65% 63.5 33  25  8.82
336 6 65% 63.5 18  13  15.00
458 6 65% 63.5 13  10  15.00
