Products    DC Motors    ZL126220 800W, 1300W, 1500W, 1800W Hydraulic unit oil pump brushed DC motor
ZL126220-3
ZL126220-2
ZL126220-1
ZL126220

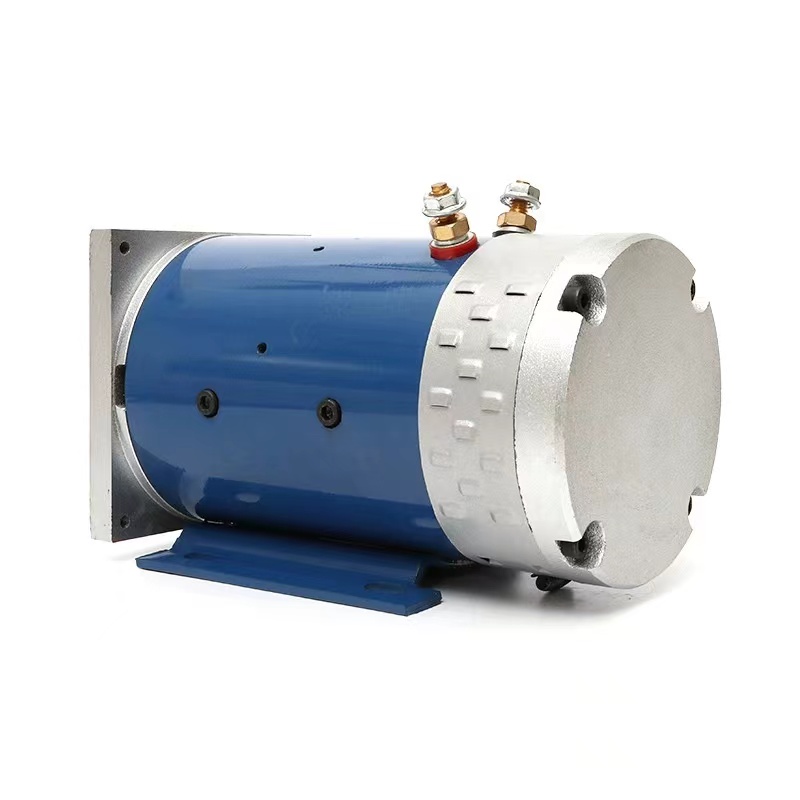

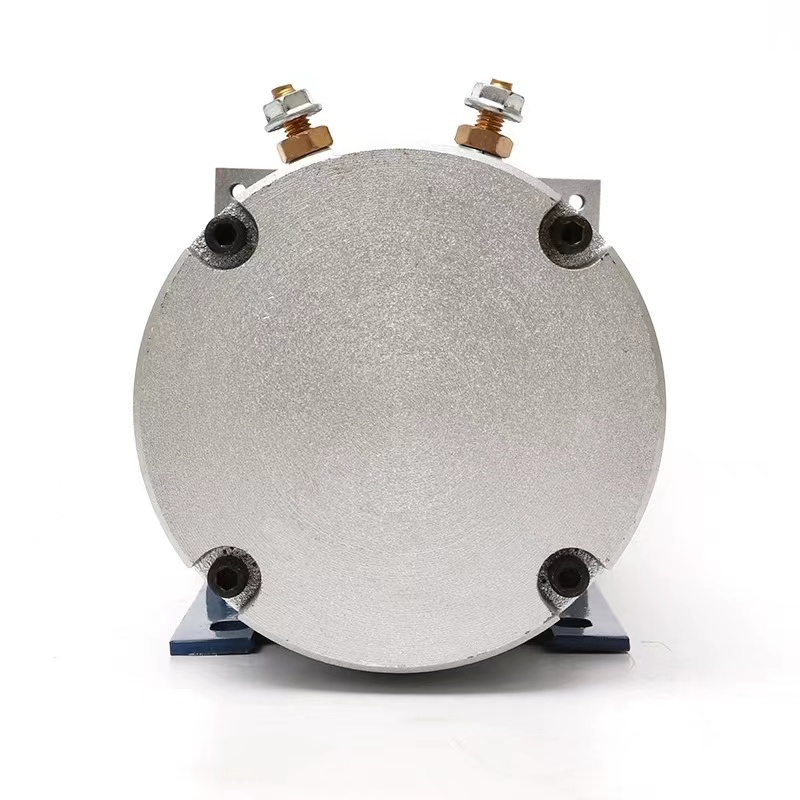

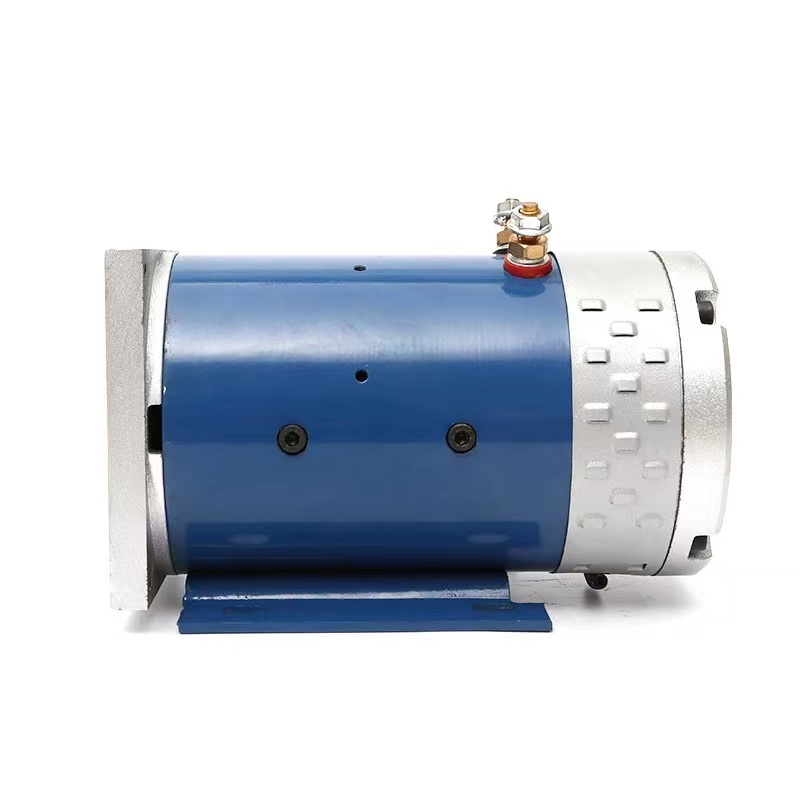

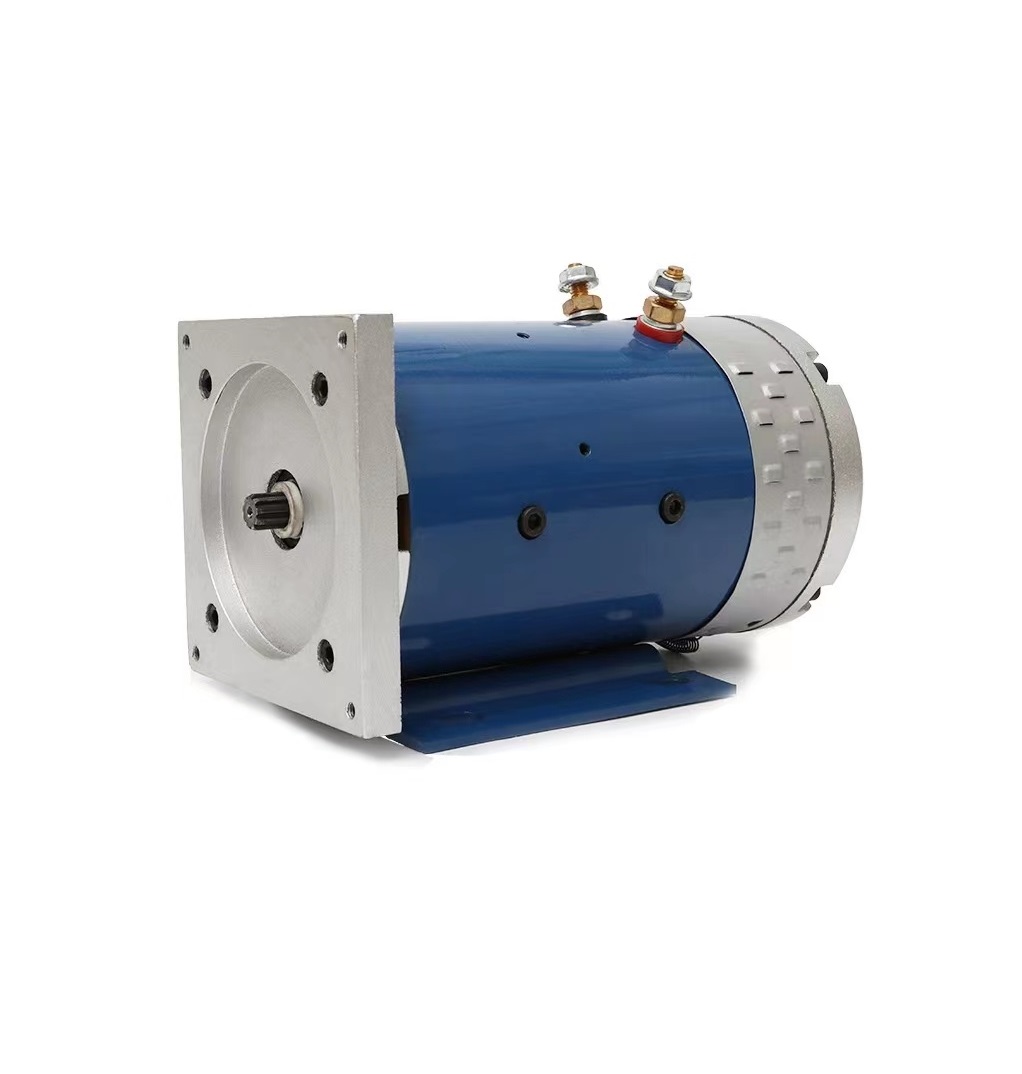

ZL126220 800W, 1300W, 1500W, 1800W Hydraulic unit oil pump brushed DC motor

ZL126220 800W, 1300W, 1500W, 1800W Hydraulic unit oil pump brushed DC motor

48V 60V 72V 800W/1300W Hydraulic Power Unit DC Motor for Sanitation Truck



Model Voltage Power Current Torque Speed Working
duty cycle
Insulation
class
IP rating No. of teeth Rotation Weight
ZL126220-48 48V 1300W 45A 7N.m 3500rpm S2 30min F IP23 9 CW 15kg
ZL126220-60 60V 1300W 34A 7N.m 3500rpm S2 30min F IP23 9 CW 15kg
ZL126220-72 72V 1300W 30A 7N.m 3500rpm S2 30min F IP23 9 CW 15kg
ZL126220-72-2 72V 1500W 37A 7N.m 3500rpm S2 30min F IP23 9 CW 15kg
