Products    DC Motors     12V, 24V, 48V 500W, 800W Little King Kong Hydraulic Power Unit Brushed DC Motor for Lift Platform
ZL80140-1
ZL80140-2
ZL80140-4
ZL80140-3

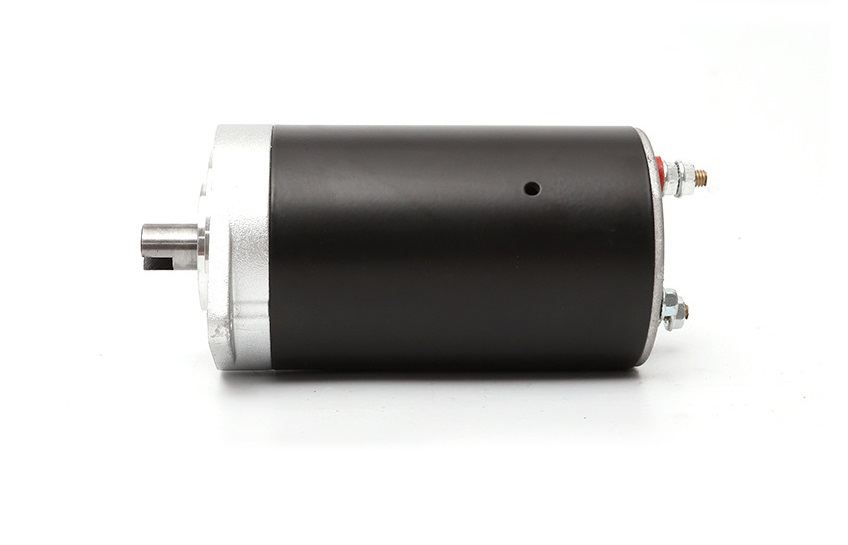

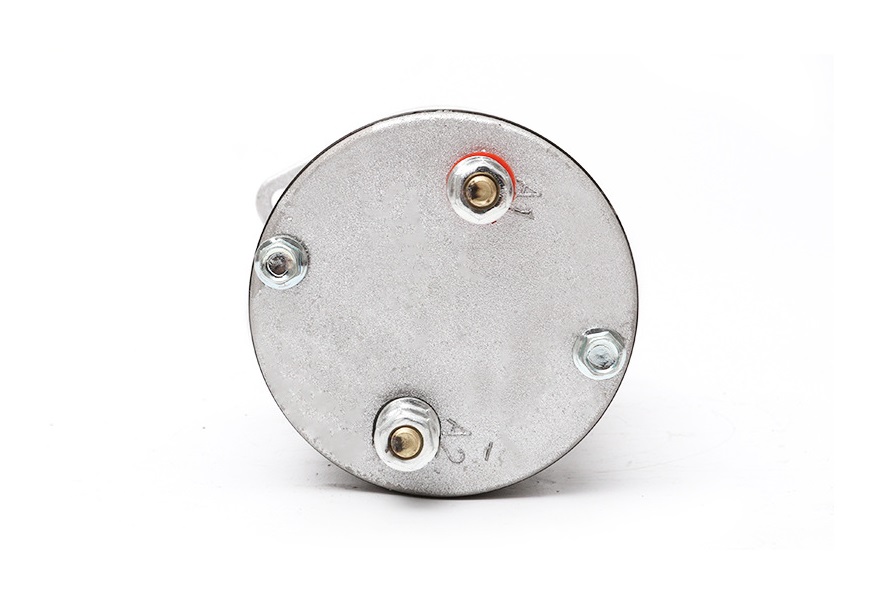

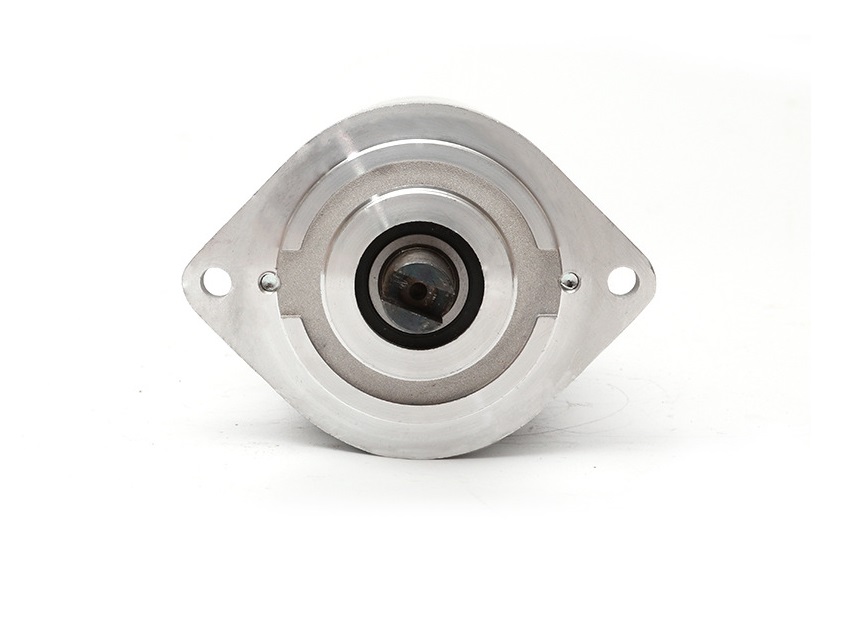

12V, 24V, 48V 500W, 800W Little King Kong Hydraulic Power Unit Brushed DC Motor for Lift Platform

 12V, 24V, 48V 500W, 800W Little King Kong Hydraulic Power Unit Brushed DC Motor for Lift Platform

Model Voltage Power Current Torque Speed Working
duty cycle
Insulation
class
IP rating No. of teeth Rotation Weight
ZL80140-12800 12V 800W 110A 2.8N.m 2550rpm 2.5min-8%ED F IP54 2 CW/CCW 2.8kg
ZL80140-24800 24V 800W 55A 2.8N.m 2550rpm 2.5min-8%ED F IP54 2 CW/CCW 2.8kg
ZL80140-12500 12V 500W 66A 2.2N.m 2350rpm 2.5min-8%ED F IP54 2 CW/CCW 2.8kg
ZL80140-24500 24V 500W 34A 2.2N.m 2350rpm 2.5min-8%ED F IP54 2 CW/CCW 2.8kg
