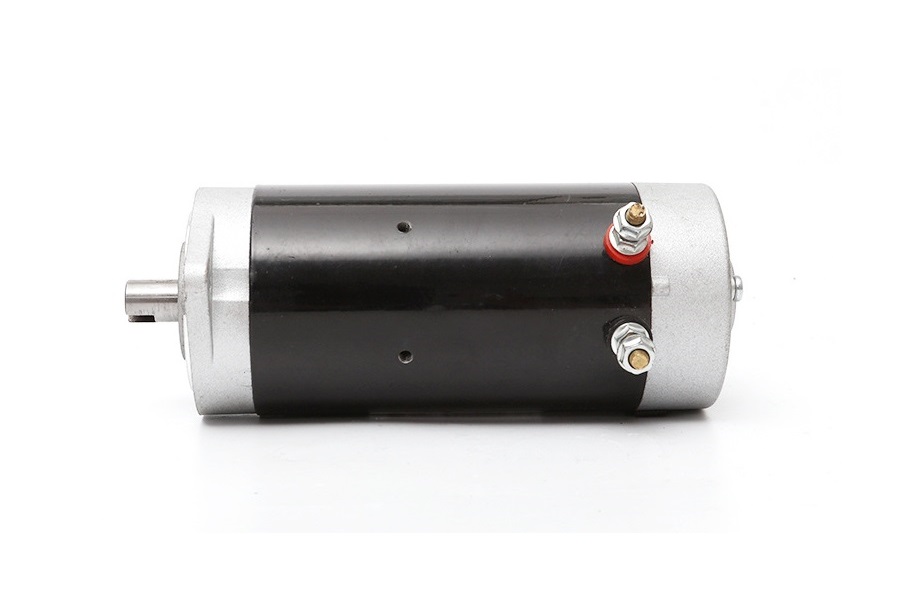

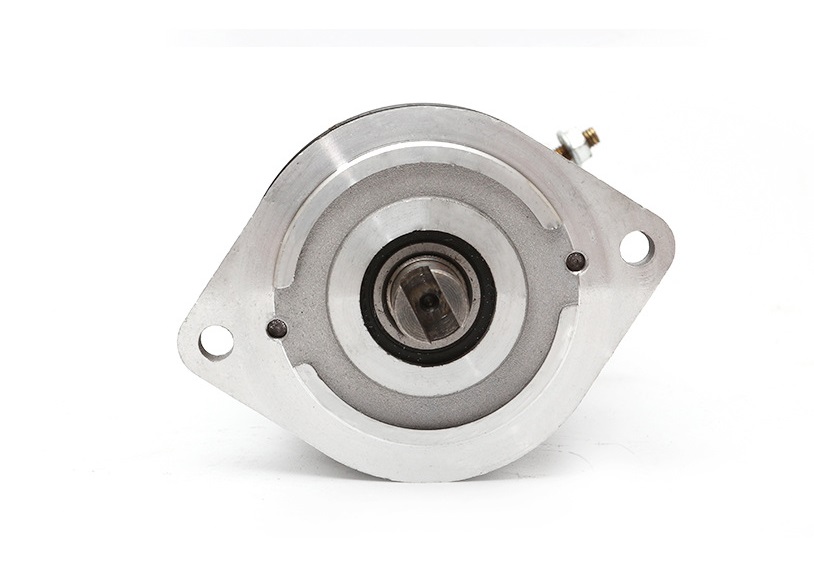

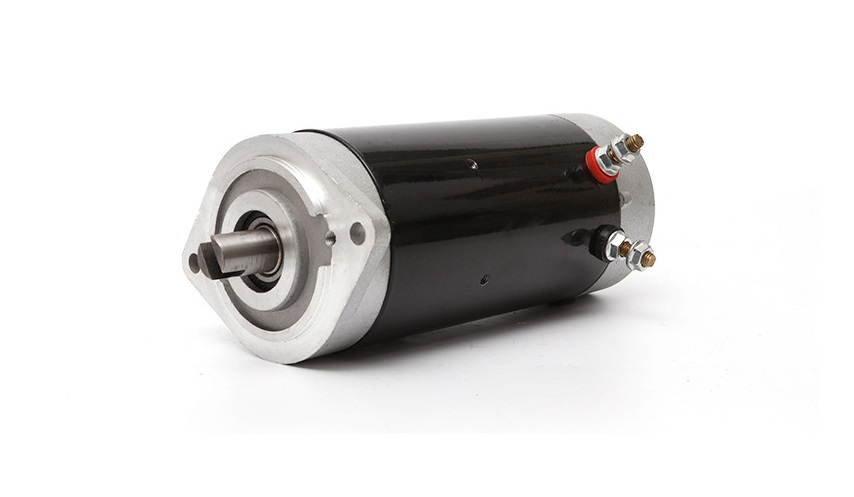

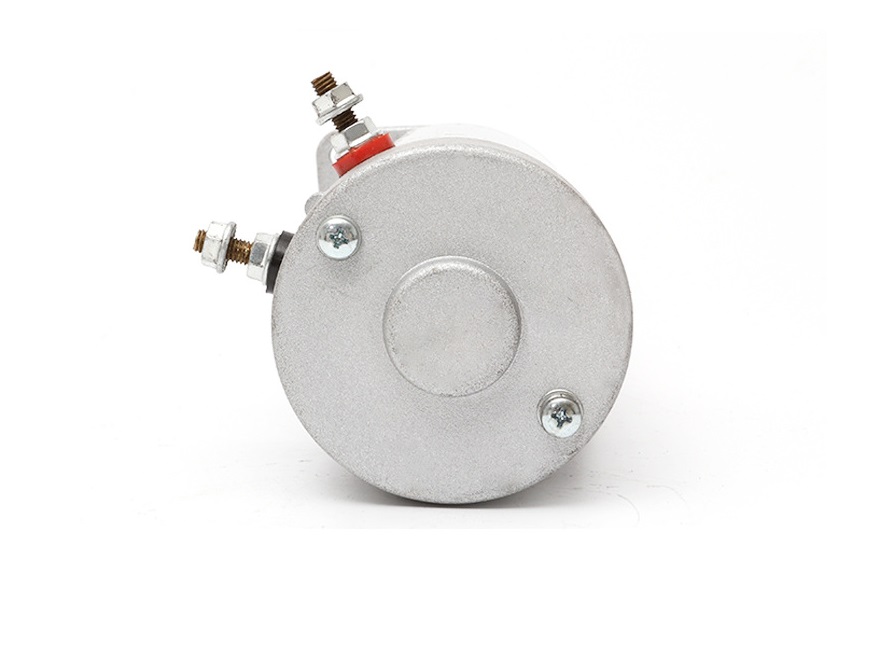

12V 24V 48V 60V 72V 800W,1200W Little King Kong Electric Brushed DC Motor for Hydraulic Lift Platform
12V 24V 48V 60V 72V 800W,1200W Little King Kong Electric Brushed DC Motor for Hydraulic Lift Platform
12V 24V 48V 60V 72V 800W,1200W Little King Kong Electric Brushed DC Motor for Hydraulic Lift Platform
| Model | Voltage | Power | Current | Torque | Speed | Working duty cycle |
Insulation class |
IP rating | No. of teeth | Rotation | Weight |
| ZL80186-12800 | 12V | 800W | 130A | 2.8N.m | 4000rpm | 4min-8%ED | F | IP54 | 2 | CW | 3.6kg |
| ZL80186-24800 | 24V | 800W | 60A | 2.8N.m | 4000rpm | 4min-8%ED | F | IP54 | 2 | CW | 3.6kg |
| ZL80186-48800 | 48V | 800W | 30A | 2.6N.m | 3500rpm | 4min-8%ED | F | IP54 | 2 | CW/CCW | 3.6kg |
| ZL80186-60800 | 60V | 800W | 25A | 2.3N.m | 3500rpm | 4min-8%ED | F | IP54 | 2 | CW/CCW | 3.6kg |
| ZL80186-721200 | 72V | 1200W | 22A | 2.45N.m | 2600rpm | 4min-8%ED | F | IP54 | 2 | CW/CCW | 3.6kg |
