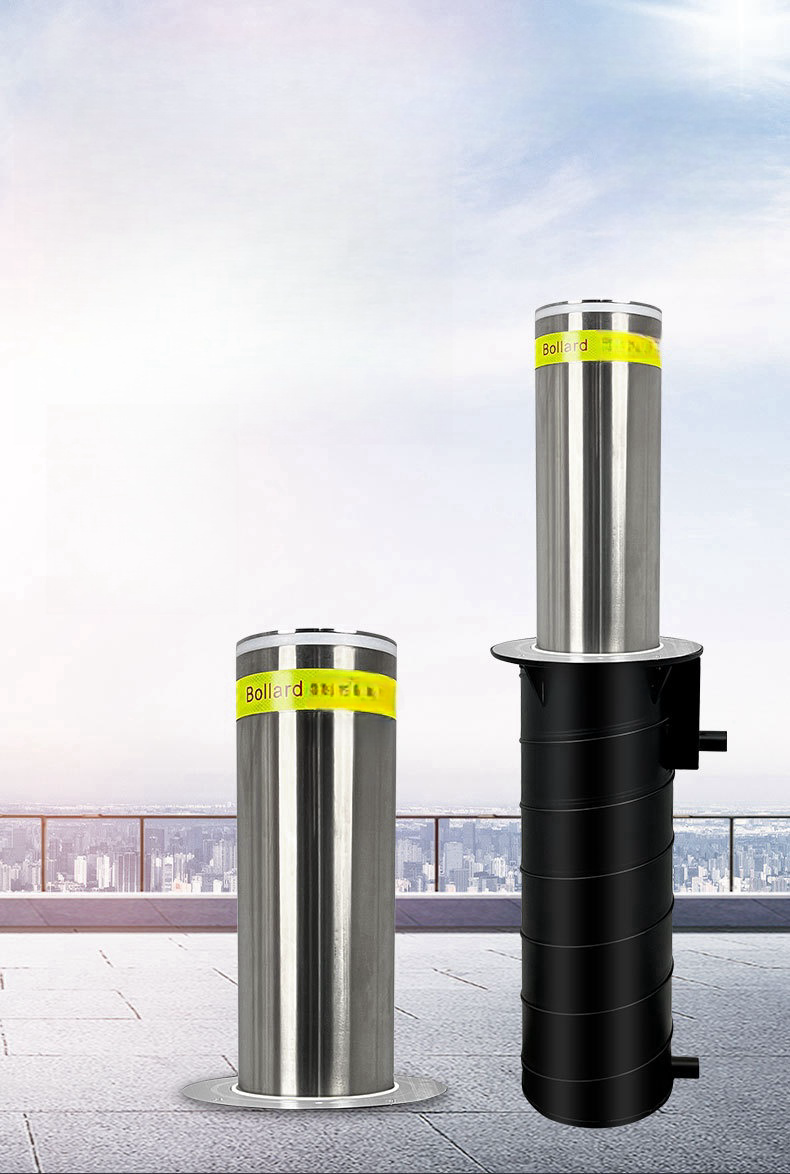

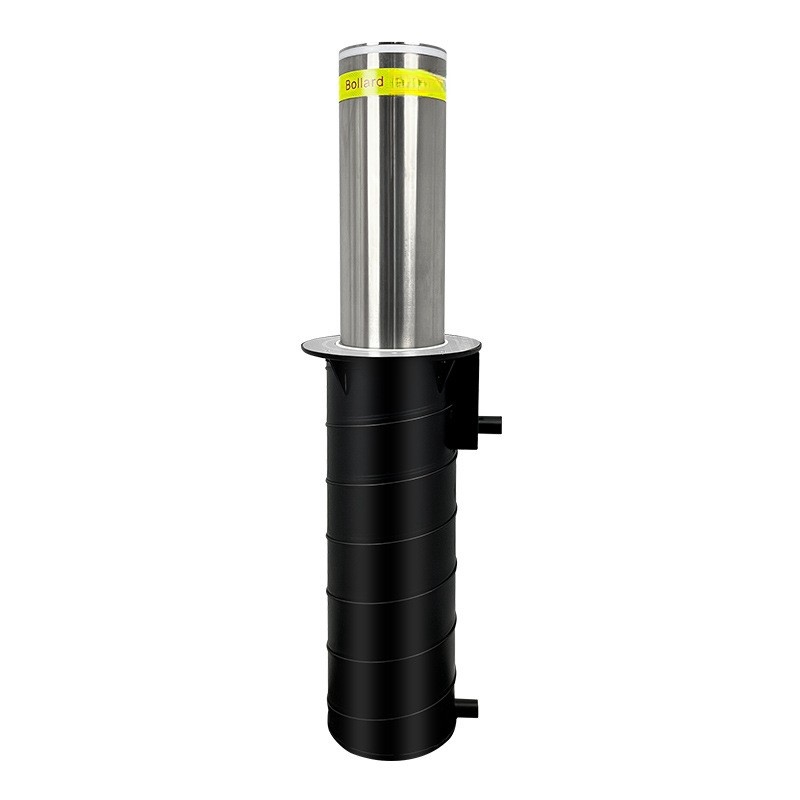

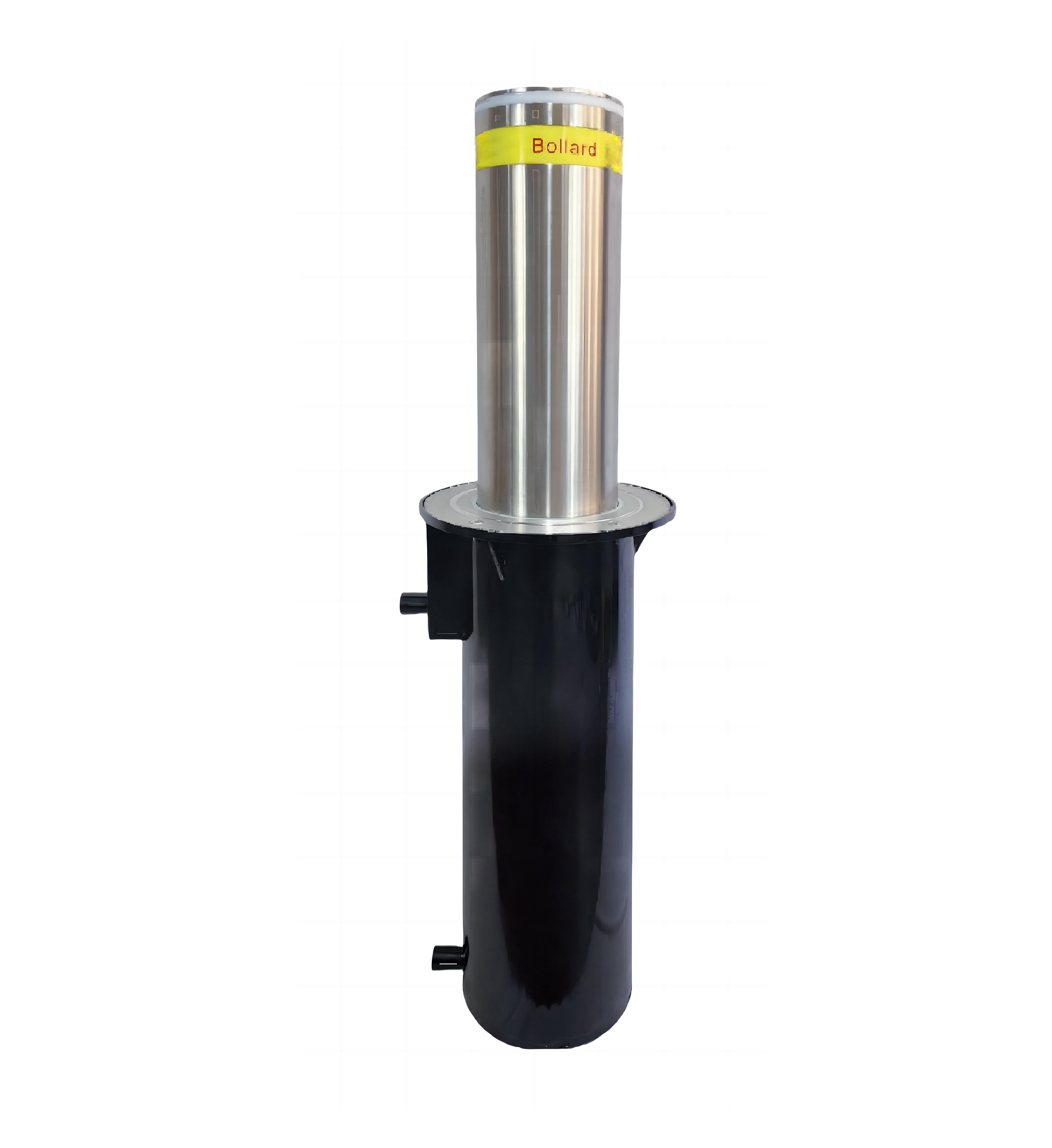

TS-BO-301FA 304 Stainless Steel Remote Control Automatic Hydraulic Rising Bollard
TS-BO-301FA 304 Stainless Steel Remote Control Automatic Hydraulic Rising Bollard
| TS-BO-301FA Series Full-automatic Bollards | |||
| Model | TS-BO-301FA-168 | TS-BO-301FA-219 | TS-BO-301FA-219L |
| Material | SUS304, SUS201, SUS316 | ||
| Diameter | 168 | 219mm | 219mm |
| Lifting Height | 600mm | ||
| Material Thickness | 3mm | 6mm | 6mm |
| Surface Treatment | Stainless steel bright polishing | ||
| Buried Depth | 810mm | 810mm | 1120mm |
| Control Mode | electro-hydraulic | electro-hydraulic | electro-hydraulic |
| IP Level | IP 68(The bottom has self-draining function) | ||
| Rise/Fall Running Time | 3 ~ 4S / 2 ~ 3S | ||
| Remote Control Distance | 50m | ||
| Working Temperature | -40 °C +70 °C | ||
| Frequency Use | High intensive | ||
| Reflective Tape | One 3M diamond series reflective, customized logo is available | ||
| Options | 12V power supply top LED light or Solar energy light | ||
| Accessories | Remote controller, group controller, APP control, IP67 outdoor control cabinet, manual control box | ||
| Weight | 55KG | 65KG | 80KG |
| Customization | shape and dimensions, material and thickness, weight, color, logo, reflective tape, bollard light, surface treatment, etc.. | ||
| Application Places | residential area, shopping mall, schools, parks, hotels, parking lot, office buildings, other public buildings, pedestrian zone, commercial buildings, etc.. | ||
| Place of Origin | Zhejiang, China | ||
| Port of Loading | Shanghai, Ningbo or other China port | ||
| Supply Ability | 5000 pcs per Month | ||
