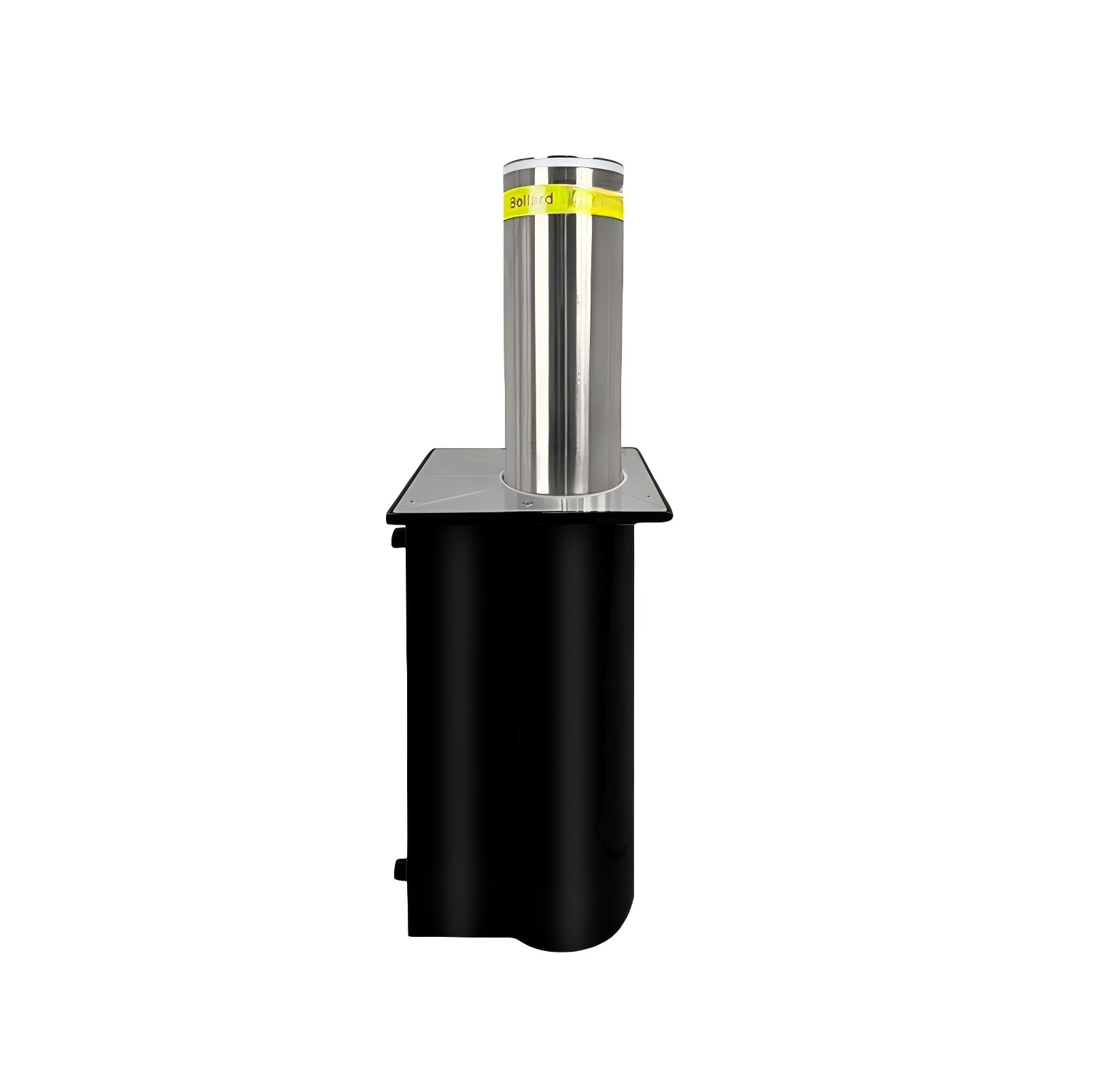

TS-BO-301FAS Series Split Type Full-automatic Bollards
| TS-BO-301FAS Series Split Type Full-automatic Bollards |
| Model |
TS-BO-301FAS-168E |
TS-BO-301FAS-168P |
TS-BO-301FAS-219E |
TS-BO-301FAS-219P |
| Material |
SUS304, SUS201, SUS316 |
| Diameter |
168mm |
168mm |
219mm |
219mm |
| Lifting Height |
600mm |
| Material Thickness |
3mm or 6mm |
3mm or 6mm |
6mm |
6mm |
| Surface Treatment |
Stainless steel bright polishing |
| Buried Depth |
850mm |
850mm |
850mm |
850mm |
| Control Mode |
electro-hydraulic |
pneumatic |
electro-hydraulic |
pneumatic |
| IP Level |
IP 68(The bottom has self-draining function) |
| Rise/Fall Running Time |
3 ~ 4S / 2 ~ 3S |
| Remote Control Distance |
50m |
| Working Temperature |
-40 °C +70 °C |
| Frequency Use |
High intensive |
| Reflective Tape |
One 3M diamond series reflective, customized logo is available |
| Options |
12V power supply top LED light or Solar energy light |
| Accessories |
Remote controller, group controller, APP control, IP67 outdoor control cabinet, manual control box |
| Weight |
70KG |
70KG |
80KG |
80KG |
| Customization |
shape and dimensions, material and thickness, weight, color, logo, reflective tape, bollard light, surface treatment, etc.. |
| Application Places |
residential area, shopping mall, schools, parks, hotels, parking lot, office buildings, other public buildings, pedestrian zone, commercial buildings, etc.. |
| Place of Origin |
Zhejiang, China |
| Port of Loading |
Shanghai, Ningbo or other China port |
| Supply Ability |
5000 pcs per Month |
